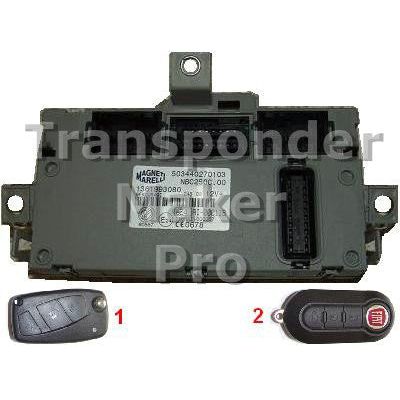

Software 112 / Fiat, Lancia, Peugeot, Citroen / BSI Marelli type 3
Memory device is serial EEPROM 95c160 or 92c320 SSOP8 package.
Expected file size is 2048 or 4096 bytes.
Use PCF7936 or Silca T14 – JMA TP12 or CN3 transponder or remote key.
IMPORTANT when you want to program the remote key : open key and look on PCB.
You will find 2 SMD chips – PCF7946 (SMD 14 pins) and a smaller SMD chip, which can be with 8, 10, or 16 pins.
If smaller SMD chip is with 10 or 16 pins, PROGRAM KEY AS TYPE 1.
If smaller SMD chip is with 8 pins, PROGRAM KEY AS TYPE 2.
Expected file size is 2048 or 4096 bytes.
Use PCF7936 or Silca T14 – JMA TP12 or CN3 transponder or remote key.
IMPORTANT when you want to program the remote key : open key and look on PCB.
You will find 2 SMD chips – PCF7946 (SMD 14 pins) and a smaller SMD chip, which can be with 8, 10, or 16 pins.
If smaller SMD chip is with 10 or 16 pins, PROGRAM KEY AS TYPE 1.
If smaller SMD chip is with 8 pins, PROGRAM KEY AS TYPE 2.
IMPORTANT: if buttons of remote operate, but not work properly, for ex. button for locking opens trunk, this is NOT A TMPro SOFTWARE PROBLEM. Use other type remote.
Software shows 5-digit PIN code.
Written transponder is ready and programmed to start the vehicle.
Vehicles equipped with this unit:
Fiat: Bravo(2007-), Ducato(2006-), Stilo(2007-), Punto(2007-), Idea(2008-)
Citroen: Jumper(2006-), Relay(2006-)
Peugeot: Boxer(2006-)
Dodge: Promaster(2011-)
Lancia: Ypsilon(2007-), Musa(2007-)
Fiat: Bravo(2007-), Ducato(2006-), Stilo(2007-), Punto(2007-), Idea(2008-)
Citroen: Jumper(2006-), Relay(2006-)
Peugeot: Boxer(2006-)
Dodge: Promaster(2011-)
Lancia: Ypsilon(2007-), Musa(2007-)
$45.12
מקורי: $128.92
-65%Software 112 / Fiat, Lancia, Peugeot, Citroen / BSI Marelli type 3—
$128.92
$45.12מידע על המוצר
מידע על המוצר
משלוח והחזרות
משלוח והחזרות
Description
Memory device is serial EEPROM 95c160 or 92c320 SSOP8 package.
Expected file size is 2048 or 4096 bytes.
Use PCF7936 or Silca T14 – JMA TP12 or CN3 transponder or remote key.
IMPORTANT when you want to program the remote key : open key and look on PCB.
You will find 2 SMD chips – PCF7946 (SMD 14 pins) and a smaller SMD chip, which can be with 8, 10, or 16 pins.
If smaller SMD chip is with 10 or 16 pins, PROGRAM KEY AS TYPE 1.
If smaller SMD chip is with 8 pins, PROGRAM KEY AS TYPE 2.
Expected file size is 2048 or 4096 bytes.
Use PCF7936 or Silca T14 – JMA TP12 or CN3 transponder or remote key.
IMPORTANT when you want to program the remote key : open key and look on PCB.
You will find 2 SMD chips – PCF7946 (SMD 14 pins) and a smaller SMD chip, which can be with 8, 10, or 16 pins.
If smaller SMD chip is with 10 or 16 pins, PROGRAM KEY AS TYPE 1.
If smaller SMD chip is with 8 pins, PROGRAM KEY AS TYPE 2.
IMPORTANT: if buttons of remote operate, but not work properly, for ex. button for locking opens trunk, this is NOT A TMPro SOFTWARE PROBLEM. Use other type remote.
Software shows 5-digit PIN code.
Written transponder is ready and programmed to start the vehicle.
Vehicles equipped with this unit:
Fiat: Bravo(2007-), Ducato(2006-), Stilo(2007-), Punto(2007-), Idea(2008-)
Citroen: Jumper(2006-), Relay(2006-)
Peugeot: Boxer(2006-)
Dodge: Promaster(2011-)
Lancia: Ypsilon(2007-), Musa(2007-)
Fiat: Bravo(2007-), Ducato(2006-), Stilo(2007-), Punto(2007-), Idea(2008-)
Citroen: Jumper(2006-), Relay(2006-)
Peugeot: Boxer(2006-)
Dodge: Promaster(2011-)
Lancia: Ypsilon(2007-), Musa(2007-)
