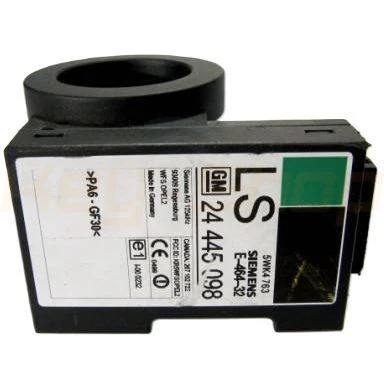

Software 20 / Opel / IMMO2 immobox Siemens

The memory device is Texas Instrument MCU TMS370C702 PLCC28 package or Motorola MCU HC908AB16A QFP64 package.
Motorola is locked, the password for the reading EEPROM area is F3-B1-F3-AB-F3-A5-F3-9F.
The expected file size is 256 bytes.
The software shows the PIN code.
Use PCF7935 or Silca T15 – JMA TP14 transponder.
The written transponder is ready and programmed to start the vehicle.

Vehicles equipped with this unit:
Opel: Agila, Astra G, Combo C, Corsa C, Meriva, Omega(1999-), Sintra(1999-), Tigra, Vectra B(1999-), Zafira
Fiat: Sedici
Suzuki: SX4
