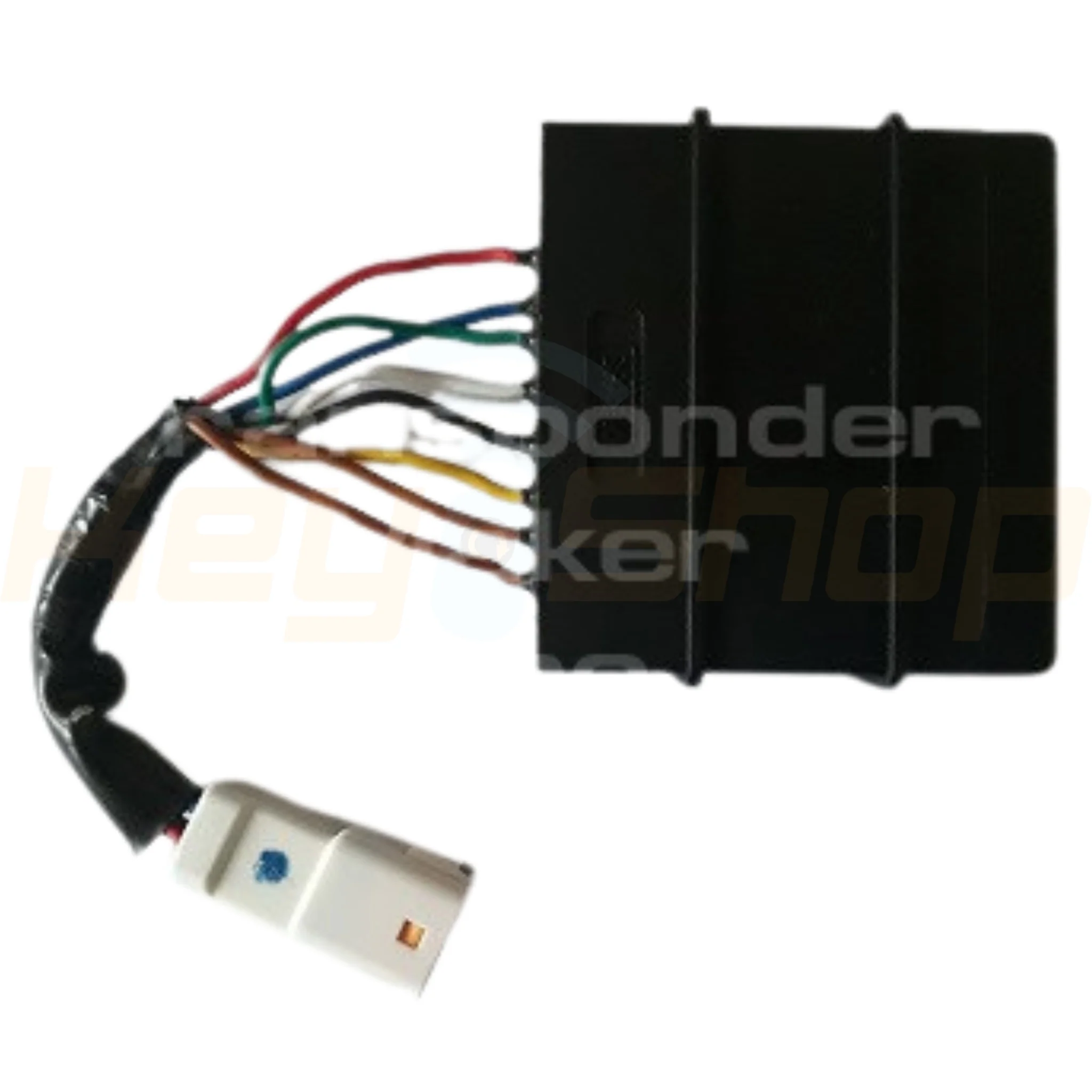

Software 226 / KTM bikes / immobox SPARK
Memory device is Renesas R5F10BAGL 30 pin SMD package.
For reading and writing of DATA FLASH area you can use UPA-USB-S or XPROG-box, download connection diagram for UPA-S and for XPROG-BOX
Expected file size is 4096 bytes.
Use PCF7938XA transponder, for example THIS .
Written transponder is ready programmed to start the bike.
Vehicles equipped with this unit:
KTM: 790, 890, 990, 1090, 1190, 1290
מקורי: $128.92
-65%$128.92
$45.12מידע על המוצר
מידע על המוצר
משלוח והחזרות
משלוח והחזרות
Description
Memory device is Renesas R5F10BAGL 30 pin SMD package.
For reading and writing of DATA FLASH area you can use UPA-USB-S or XPROG-box, download connection diagram for UPA-S and for XPROG-BOX
Expected file size is 4096 bytes.
Use PCF7938XA transponder, for example THIS .
Written transponder is ready programmed to start the bike.
Vehicles equipped with this unit:
KTM: 790, 890, 990, 1090, 1190, 1290
